Port: Slagen

Terminal:

Pilot dispatch:



Pilot boarding area:

Mileage pilot - port/berth:

Esso Norge AS, Slagentangen

Horten (Hvasser)
VHF Ch 13 / 16
Phone: +47 33 03 49 70

Faerder: 59° 04,5´ N / 010° 34,5´ E

abt. 20 nm

My Image

Name of berth:

Position:

Owner of berth:

Esso Norge AS, Slagentangen.
Berth No. 1 / 2 / 3
59° 19,5´ N / 010° 30,8´ E

Esso Norge AS, Slagen Refinery

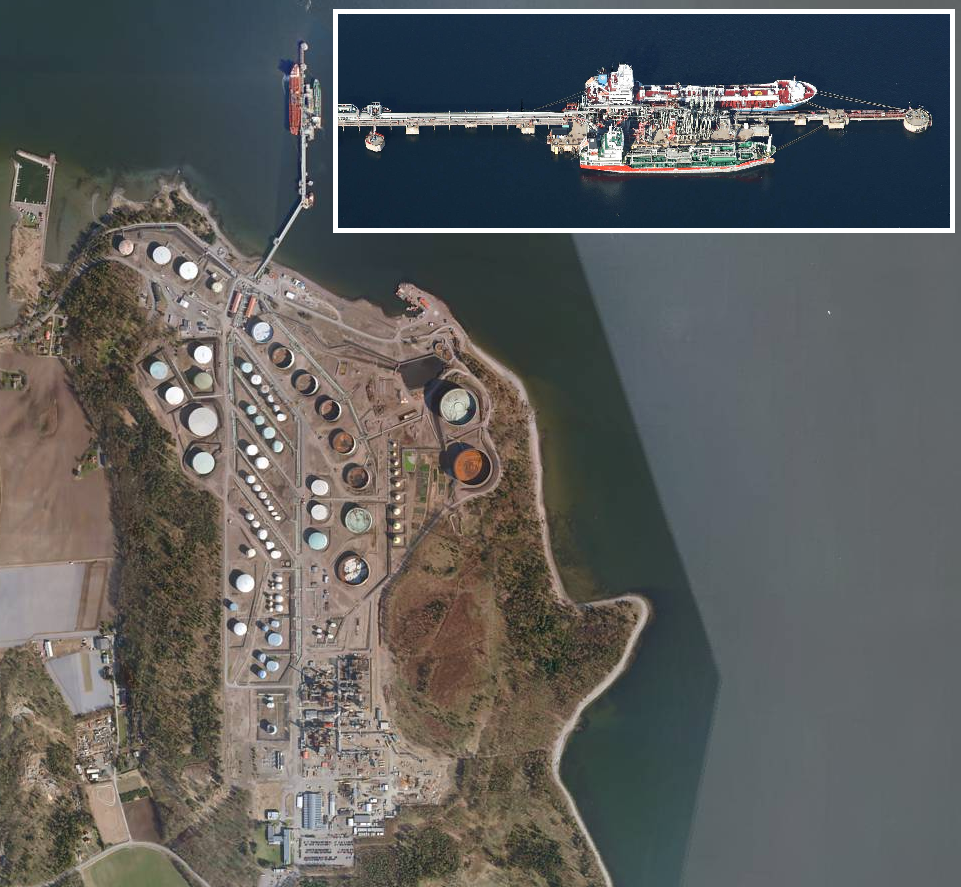

Slagen terminal consists of one finger pier aligned north/south.
Berth 1 located on the east side of the pier and berth 2 and 3 on the west.

Dedicated areas for anchorage:
Alpha, Bravo and Charlie. Located just north of the pier head.
Harbour office at Slagen in coordination with pilots advices where to anchor.


Restrictions:

Draft: (dens:1,018)
LOA:
Beam:
Air Draft:
Displacement:
DWT:

Products:

Cargo arm sizes
(All arms ANSi/150 standard)

Tidal fluctuation:
Condition of ground:

Berth No. 1:

19,0 m
350 m
No restriction
No restriction

190.000

Crude, HFO, Products, LPG
6", 8", 10", 12"



abt. 30 cm (1 foot)
Rock / clay

Berth No. 2:

10,5 m
192 m
No restriction
No restriction
21.000
30.000

HFO, Products

8"

Berth No. 3:

10,0 m
110 m
No restriction
No restriction
11.800
8.000

LPG

6"


Discharges:

Segregated ballast water:
Slop/ballast to shore:

Pre-washing slop to shore:



Yes
Yes, slop disposal request must be sent in advance
Yes, slop disposal request must be sent in advance

Tugboats are available and compulsory for:
All LPG-vessels above DWT 900.
All vessels fitted with reversible engine (No controllable pitch propeller or gear).
Vessels above DWT 15.999 fitted with controllable pitch propeller and not stern thruster.
Vessels above DWT 24.999 fitted with controllable pitch propeller, bow and stern thruster.

In addition:
All vessels above DWT 19.999 carrying dirty cargoes needs one escorting tug between Slagen and Hollenderboen when loaded

Other restrictions:
Vessel inspected and approved by Exxon. Exxon minimum safety requirements apply.

Transit cargoes are allowed. Also low flash cargoes.

Normal working hours: All days at 24 hrs basis.

Fresh water is available.
